High-speed powder packing lines demand fast, accurate, and compliant quality control. The two most common approaches are inline weight checking and statistical sampling, but they serve very different purposes and produce very different levels of process visibility.
For pharmaceutical and nutraceutical manufacturers, the right choice is not simply about cost. It is about product safety, GMP compliance, line efficiency, and long-term process stability.
Powder packing lines run under constant pressure. Product flow changes, dust can interfere with weighing, and minor fill variation can quickly become a batch-level risk. In that environment, the inspection method you choose affects not only yield, but also recall risk, deviation rate, and regulatory confidence.
This is especially important for manufacturers of sachets, stick packs, bottles, and large-volume powder presentations where fill consistency is critical. Inline weight checking provides direct process feedback, while statistical sampling provides only a partial view of what has already happened.
Inline weight checking uses an in-line checkweigher placed directly on the production line. Each unit is weighed in motion or at very high speed, and units outside tolerance are rejected automatically.
This method gives manufacturers real-time data on every pack. That makes it easier to detect drift early, adjust feeders, and prevent large quantities of nonconforming product from moving downstream.
- 100% inspection of finished packs.
- Real-time detection of underfill and overfill.
- Automatic rejection of out-of-spec units.
- Better process control for high-speed lines.
- Traceable digital records for quality systems.
- Requires capital investment and integration work.
- Sensitive to vibration, air movement, and line instability.
- Needs regular calibration and validation.
- Does not directly prove content uniformity, only weight compliance.
Statistical sampling means checking a limited number of units from a batch or time interval and using the results to infer whether the rest of the lot is acceptable. It is widely used in batch release, incoming inspection, and periodic process verification.
This approach is simpler and cheaper to implement, but it is less protective on a fast line because it can miss short-term process drift. If a problem occurs between samples, many defective packs may pass unnoticed.
- Lower equipment cost.
- Easier to deploy on legacy lines.
- Useful for batch-level verification.
- Helpful when product format or line design makes inline inspection difficult.
- Often sufficient for low-risk, low-speed operations.
- Only checks a small fraction of output.
- Misses short spikes, drift, and intermittent failures.
- Provides delayed feedback.
- Higher risk of batch rework, wastage, or investigation.

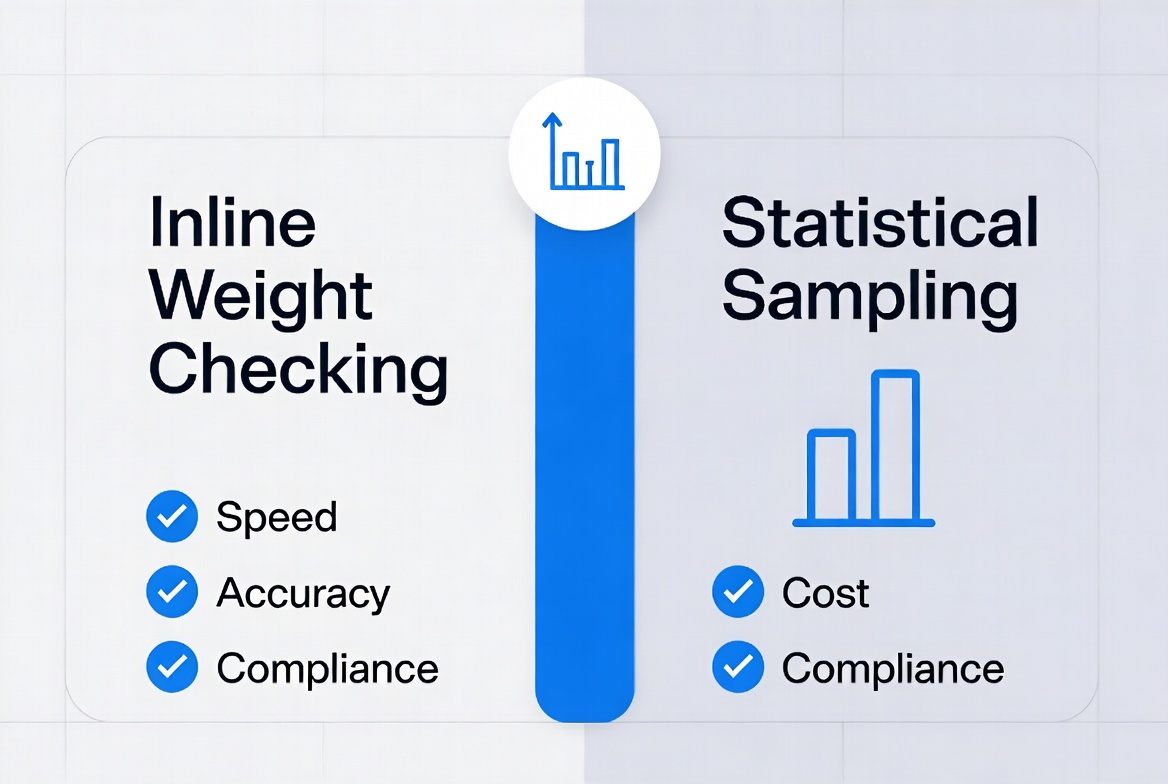

The best way to evaluate the two methods is to compare them against the realities of modern powder packing.
| Factor | Inline Weight Checking | Statistical Sampling |
|---|---|---|
| Coverage | 100% of packs | Limited subset |
| Feedback speed | Immediate | Delayed |
| Drift detection | Strong | Weak |
| Automation | High | Low to medium |
| Regulatory traceability | Strong | Moderate |
| Capital cost | Higher | Lower |
| Operating cost | Moderate | Lower initially |
| Batch protection | Strong | Partial |
| Best fit | High-speed GMP lines | Lower-speed or low-risk lines |
For a high-speed powder packaging line, inline checking is usually the stronger option because it supports real-time control rather than retrospective inspection. Statistical sampling is still useful, but mainly as a supporting quality tool rather than the primary safeguard.
In regulated pharmaceutical production, quality control is no longer just about rejecting bad packs. It is about proving that the process is stable, repeatable, and documented.
From a GMP perspective, manufacturers usually prioritize:
- Process capability
- Line data integrity
- Deviation prevention
- Documented traceability
- Batch release confidence
Inline weight checking fits these priorities better because it creates a continuous data stream. Statistical sampling can support release decisions, but it cannot provide the same level of process visibility.
A good choice depends on your line speed, product risk, and compliance expectations. Use the following framework:
1. Choose inline weight checking if your line runs at high speed, the dosage form is sensitive, and nonconforming packs create major compliance or recall risk.
2. Choose statistical sampling if production volume is lower, the process is stable, and you need a lower-cost quality control method.
3. Use both when you need real-time rejection plus batch-level verification for audit support.
4. Add upstream controls if fill variation is frequent, such as feeder optimization, hopper design, environmental control, or powder flow conditioning.
This layered approach often gives the best balance of quality, cost, and operational resilience.
In practice, the best inspection method can still fail if the line is poorly designed. For powder systems, several engineering factors matter:
- Powder flowability, because bridging and rat-holing affect dose consistency.
- Vibration isolation, because unstable equipment affects checkweigher performance.
- Dust control, because airborne powder can interfere with sensors.
- Conveyor stability, because mechanical noise reduces weighing accuracy.
- Upstream filling consistency, because a checkweigher can only detect, not correct, upstream variability.
This is why packaging inspection should be planned together with factory layout, equipment selection, and process flow design.
Across the pharmaceutical packaging sector, the trend is moving toward closed-loop quality control. That means inspection is no longer treated as a final step only. It is increasingly connected to feeder control, alarm logic, line stops, and batch data systems.
For high-speed powder lines, this matters because variation often develops faster than human operators can react. Inline checking gives the line an ability to respond in seconds rather than minutes. That difference can save thousands of packs over a single shift.
- High-speed sachet or stick-pack lines.
- Large-volume powder filling.
- GMP-regulated pharmaceutical products.
- Anticancer or high-value formulations.
- Lines where overfill directly impacts margin and underfill creates compliance risk.
- Low- to medium-speed operations.
- Supplementary quality assurance.
- Legacy production lines with limited automation.
- Early-stage manufacturing where capital budgets are constrained.
From a plant design perspective, the best strategy is to think beyond the machine itself. A powder packing line should be designed as a system, not as separate devices.
That means the filling machine, checkweigher, reject station, dust extraction, cleanroom flow, and data recording system should all work together. When this is done correctly, inline weight checking becomes not just an inspection tool, but part of the overall process-control architecture.
For a manufacturer like Ningbo Everheal Medical Equipment Co., LTD., this systems view is especially relevant because line performance depends on layout planning, utility design, equipment integration, and GMP readiness.
A strong CTA should appear after the decision framework or conclusion. For example:
Need a powder packing line that balances accuracy, speed, and GMP compliance?
Contact Ningbo Everheal Medical Equipment Co., LTD. to discuss custom factory layout planning, inline inspection integration, and complete pharmaceutical production line solutions.
Yes. Inline weight checking measures every unit, so it gives more complete visibility than statistical sampling.
Yes. It is useful for batch verification, audit support, and lower-risk processes, especially when used alongside other controls.
No. It is a powerful control point, but it should still be supported by calibration, validation, and upstream process control.
Inline weight checking is usually better because it provides immediate feedback and rejects defective packs automatically.
Vibration, dust, conveyor instability, product flow, and upstream fill variation are the main factors.
