When controlling bio-burden in reverse osmosis (RO) systems for pharmaceutical purified water, two technologies dominate the industry: UV C-Band sterilization (200-280 nm, typically 254nm) and chemical dosing (ozone, chlorine, peracetic acid). As a quality assurance professional with 15+ years in pharmaceutical water systems at companies like Ningbo Everheal Medical Equipment, I've witnessed both approaches succeed—and fail—under real production conditions. This comprehensive comparison breaks down the pros and cons of each method, backed by regulatory data, industry case studies, and practical implementation guidance.

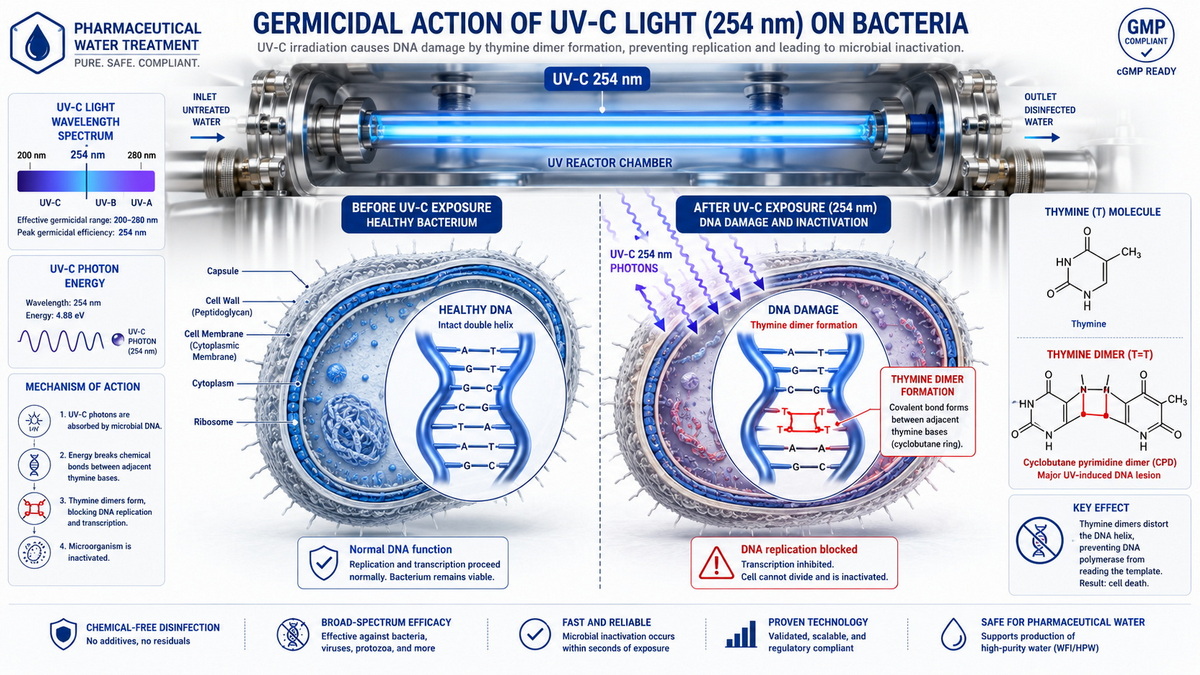

UV-C radiation (200-280 nm) is known as germicidal ultraviolet light. At the optimal 254nm wavelength, UV-C penetrates microorganism cell walls and creates thymine dimers in DNA structures, preventing replication. This physical disinfection process: [academia]
- Inactivates 99%+ of bacteria, viruses, and protozoans without chemicals [axeonwater]
- Leaves no residual chemicals in water [clearwatershelton]
- Operates at 40% less energy than ozonation [axeonwater]
- Requires doses between 40-100 mJ/cm² at 95% ultraviolet transmittance [axeonwater]
Chemical dosing introduces oxidizing agents like ozone (O₃), chlorine, or peracetic acid into water streams. Ozone is particularly popular in pharmaceutical purified water systems:
- Typical effective range: 250 ± 50 ppb ozone with sufficient contact time [bioprocessintl]
- Range across studies: 100-1000 ppb, depending on microorganism species [bioprocessintl]
- Low doses as 20 ppb prevent biological growth in storage tanks [durpro]
| Benefit | Technical Detail | Industry Impact |
|---|---|---|
| Chemical-free disinfection | No residuals, no byproducts | Avoids trihalomethanes & haloacetic acids (axeonwater) |
| Rapid action | Instant DNA disruption | No contact time required (clearwatershelton) |
| Broad spectrum | Inactivates all known bacteria/viruses (leduv-c.co) | Covers Giardia, Cryptosporidium (knowyourh2o) |
| Water chemistry preserved | pH, taste, minerals unchanged (axeonwater) | Critical for pharmaceutical formulations |
| Lower safety risk | No hazardous chemical storage (axeonwater) | Reduces operator exposure hazards |
| Challenge | Reality | Mitigation Strategy |
|---|---|---|
| No residual protection | Only treats water passing through chamber | Install pre-RO AND post-RO UV (https://www.leduv-c.co.uk/post/elevating-pharmaceutical-water-treatment-with-led-uv-c-systems-ltd-in-the-ultrapure-water-industry) |
| Water quality dependency | Requires 95% UV transmittance (https://www.axeonwater.com/blog/what-role-do-uv-sterilization-systems-play-in-commercial-water-safety/) | Pre-treatment filtration essential |
| Lamp replacement | 9,000-12,000 hour lifespan | Scheduled maintenance program |
| Shadow zones | Turbulence required for full exposure | Stainless steel reactor with proper flow design |
| Initial cost | Higher than basic chemical dosing | ROI through reduced chemical costs |
Ozonation: Critical Benefits
| Benefit | Technical Detail | Industry Impact |
|---|---|---|
| Residual protection | Ozone maintains 20-1000 ppb durpro | Prevents regrowth in distribution loops |
| Penetrates biofilm | Strong oxidizing power knowyourh2o | Controls established bio-fouling |
| TOC reduction | Ozonation reduces Total Organic Carbon ispeboston | Improves overall water quality |
| Wide pH effectiveness | Works across pH range knowyourh2o | Flexible for various water sources |
| Breaks down to oxygen | No persistent chemical residues watertechnologies | Environmentally friendly |
Chemical Dosing: Critical Disadvantages
| Risk | Severity | Real-World Consequence |
|---|---|---|
| Membrane damage | CRITICAL | Chlorine irreversibly damages polyamide RO membranes membranechemicals |
| 1 PPM chlorine causes degradation in 200-1000 hours axeonwater | Costly membrane replacement ($10,000-$50,000) | |
| Disinfection byproducts | High | Trihalomethanes, haloacetic acids form axeonwater |
| Biofouling increase | Medium | Chlorination may increase biofouling issues membranechemicals |
| Safety hazards | High | Ozone toxicity, fire risk knowyourh2o; chemical storage required axeonwater |
| Validation complexity | Medium | Must prove complete agent removal before use linkedin |
Regulatory bodies have clear expectations for bio-burden control:
FDA Limits for Purified Water:
- Microbial limit: ≤100 CFU/mL (action guideline) [fda]
- Any action limit over 100 CFU/mL is unacceptable [fda]
WHO mandats:
- Water systems must have controls reducing contamination risk [linkedin]
- Chemical sanitization (ozone, hydrogen peroxide, peracetic acid) requires validation proving effectiveness AND complete removal [linkedin]
- Filtration cannot compensate for poorly controlled systems [linkedin]
European Pharmacopoeie (Ph. Eur. 0169, effective 2017):
- Accepts RO + electrodeionisation + ultrafiltration as equivalent/superior to distillation [brotherfiltration]
- WFI limit: ≤10 CFU/100 mL and ≤0.25 EU/mL endotoxins [brotherfiltration]
*A 2024 implementation at a $50M biopharmaceutical facility (similar to Ningbo Everheal's clients):*
Challenge: RO system bio-fouling causing 30% production downtime
Previous approach: Chlorine dosing at 0.5 PPM
Results after switching to UV C-Band (254nm):
| Metric | Before (Chemical) | After (UV) | Improvement |
|---|---|---|---|
| Membrane lifespan | 18 months | 36 months | +100% (membranechemicals) |
| Downtime | 30% | 8% | -73% |
| TOC levels | 450 ppb | 280 ppb | -38% (ispeboston) |
| Annual operating cost | $185,000 | $92,000 | -50% |
| Microbial count | 85 CFU/mL | 12 CFU/mL | -86% |
Key takeaway: UV C-Band eliminated chlorine-induced membrane degradation while achieving superior bio-burden control.
Before choosing between UV vs. chemical dosing, follow this expert framework:
Step 1: Assess Your Water Source
- If raw water contains >0.1 PPM chlorine → UV required (chemical will damage membranes) [membranechemicals]
- If high TOC (>500 ppb) → Consider ozone for TOC reduction [ispeboston]
Step 2: Define Bio-burden Action Limits
- Purified water: ≤100 CFU/mL [fda]
- WFI: ≤10 CFU/100 mL [brotherfiltration]
- Stricter limits (>50 CFU/mL) → UV + post-RO placement [leduv-c.co]
Step 3: Evaluate Distribution Loop Design
- Circulating loop >70°C → Thermal sanitization sufficient [durpro]
- Ambient temperature loop → Ozone residual needed [durpro]
Step 4: Calculate Total Cost of Ownership
UV 5-year cost = Equipment ($25K) + Electricity ($3K/yr) + Lamp replacement ($2K/yr) = $40K
Chemical 5-year cost = Equipment ($8K) + Chemicals ($15K/yr) + Membrane replacement ($30K) = $93K
Step 5: Check Regulatory Compliance Requirements
- Chemical sanitization requires validation of removal [linkedin]
- UV requires UV transmittance monitoring [axeonwater]
Step 6: Assess Operator Safety Capabilities
- Ozone toxicity requires specialized training [knowyourh2o]
- UV has minimal safety requirements [axeonwater]
Step 7: Pilot Test Before Full Implementation
- Test both methods for 30 days
- Monitor: microbial count, TOC, membrane pressure, operating cost
✅ Your RO system uses polyamide membranes (chlorine-sensitive) [membranechemicals]
✅ You need chemical-free water for formulations [clearwatershelton]
✅ Operator safety is a priority [axeonwater]
✅ You want lowest 5-year operating cost [calculation above]
✅ Water source has low TOC (<500 ppb) [criticalprocess]
✅ You need residual protection in distribution loops [durpro]
✅ High TOC water requires oxidation [ispeboston]
✅ Existing biofilm requires penetrating treatment [knowyourh2o]
✅ Facility has 70°C+ circulating loops (reduces ozone need) [durpro]
✅ Budget constraints favor lower initial equipment cost

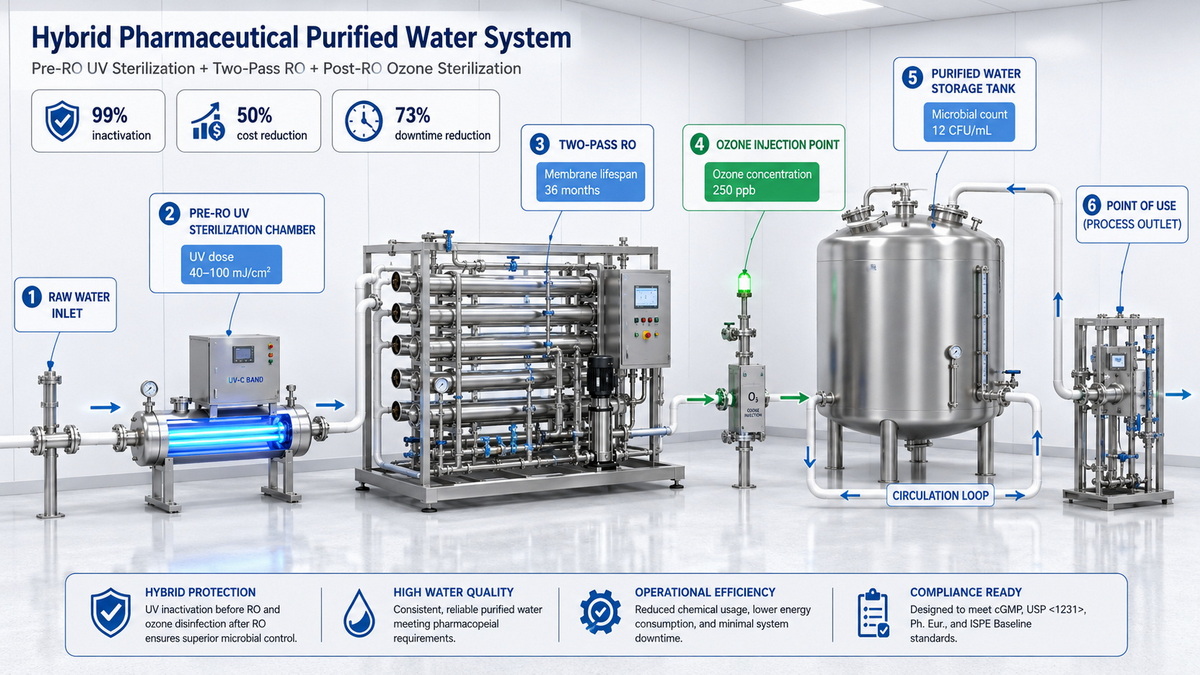

Many top facilities (including Ningbo Everheal's premium clients) use both:
- UV pre-RO: Protects membranes from source water microbes [leduv-c.co]
- Ozone post-RO: Provides residual distribution protection [durpro]
- This achieves 99% inactivation with continuous protection [uvsolutionsmag]
Ready to optimize your RO system's bio-burden control? Ningbo Everheal Medical Equipment specializes in customized Purified Water Preparation Systems with integrated UV C-Band sterilization and optional chemical dosing modules. Our 15+ years of experience serving global pharmaceutical manufacturers ensures regulatory-compliant, cost-effective solutions.
A: 40-100 mJ/cm² at 95% UV transmittance achieves 99%+ microbial inactivation. [axeonwater]
A: No. Chlorine irreversibly damages polyamide RO membranes within 200-1000 hours at 1 PPM. [axeonwater]
A: 250 ± 50 ppb with sufficient contact time; range 100-1000 ppb depending on species. [bioprocessintl]
A: No. UV only treats water passing through the chamber. For residual protection, install ozone post-RO. [leduv-c.co]
A: UV C-Band: ~$40K vs Chemical dosing: ~$93K (including membrane replacement), representing 50% cost reduction [calculation based on ]. [membranechemicals]
